WebSocket Streaming

Every metapage has a private WebSocket broadcast channel. All metaframes — both JavaScript and container — can connect to this channel to send and receive messages outside the normal postMessage routing layer.

This is particularly useful for container metaframes that need low-latency bidirectional communication without going through the browser-side routing layer.

Use cases​

  • Streaming progress updates from a long-running container job to the browser
  • Real-time data feeds between multiple container workers
  • Cross-metapage communication (share the channel URL between metapages)
  • Bypassing the connection graph for ephemeral event messages

How it works​

Each metapage generates an unguessable WebSocket URL and injects it into all metaframes at runtime. The URL can be regenerated at any time from the metapage settings to revoke access.

The channel is a broadcast router: all connected clients receive all messages. The system is designed for low-latency small messages — large binary blobs are not currently supported.

Accessing the WebSocket URL​

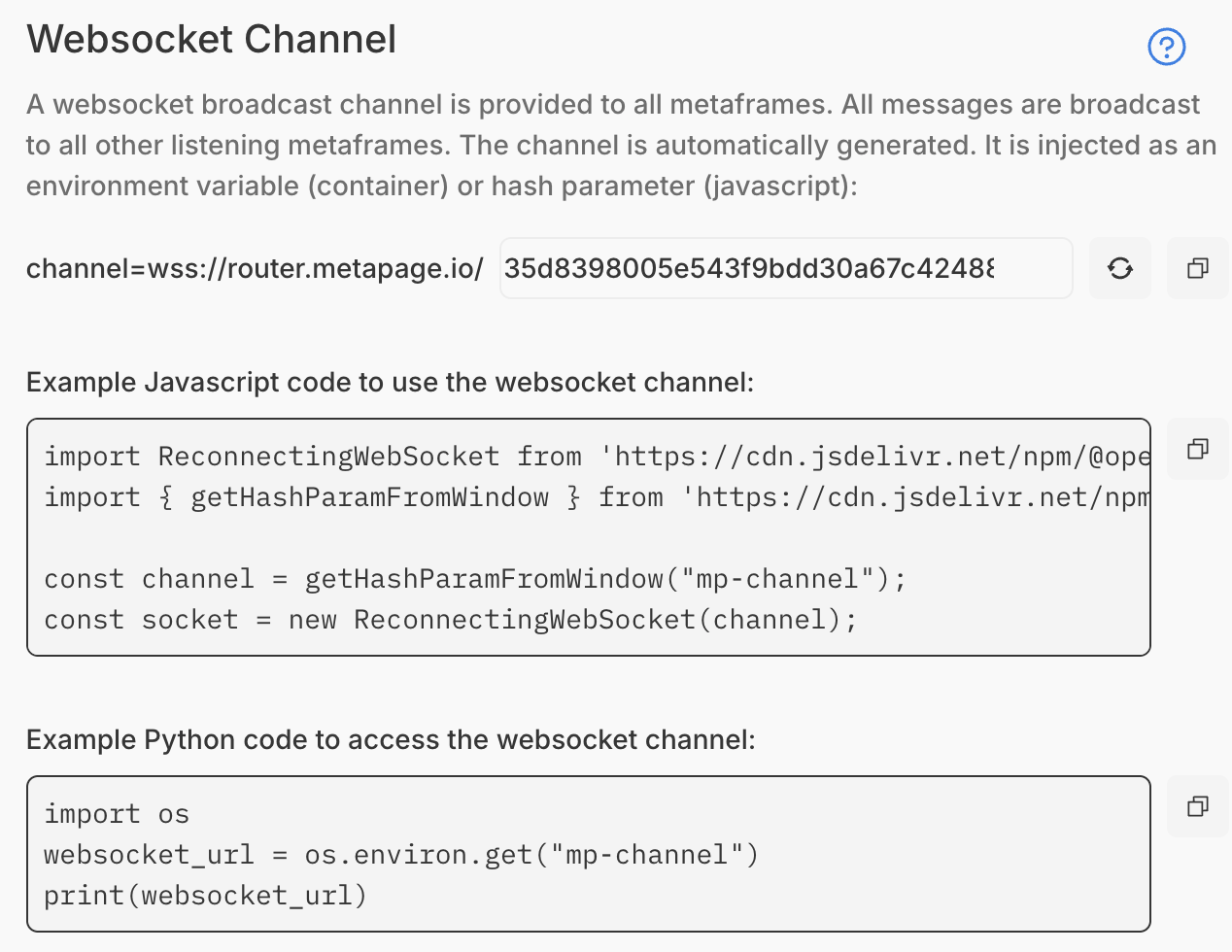

The channel URL is available in the metapage settings under Settings → WebSocket Channel. From there you can copy the URL or copy code snippets for connecting from JavaScript or Python.

From within a metaframe (JavaScript), the URL is injected as a special input named _websocket_url_ — listen for inputs to receive it:

import { MetaframeClient } from "@metapages/metapage";

const mf = new MetaframeClient();

mf.onInputs = (inputs) => {
  const wsUrl = inputs["_websocket_url_"];
  if (wsUrl) {
    const ws = new WebSocket(wsUrl);
    ws.onmessage = (event) => {
      const msg = JSON.parse(event.data);
      // handle message
    };
    ws.onopen = () => {
      ws.send(JSON.stringify({ type: "hello", from: "frame-a" }));
    };
  }
};

From a container (Python):

import os, json, asyncio, websockets

async def main():
    url = os.environ.get("WEBSOCKET_URL")  # injected by the metapage
    async with websockets.connect(url) as ws:
        await ws.send(json.dumps({"type": "progress", "value": 0.5}))
        msg = await ws.recv()
        print(json.loads(msg))

asyncio.run(main())

Live example​
